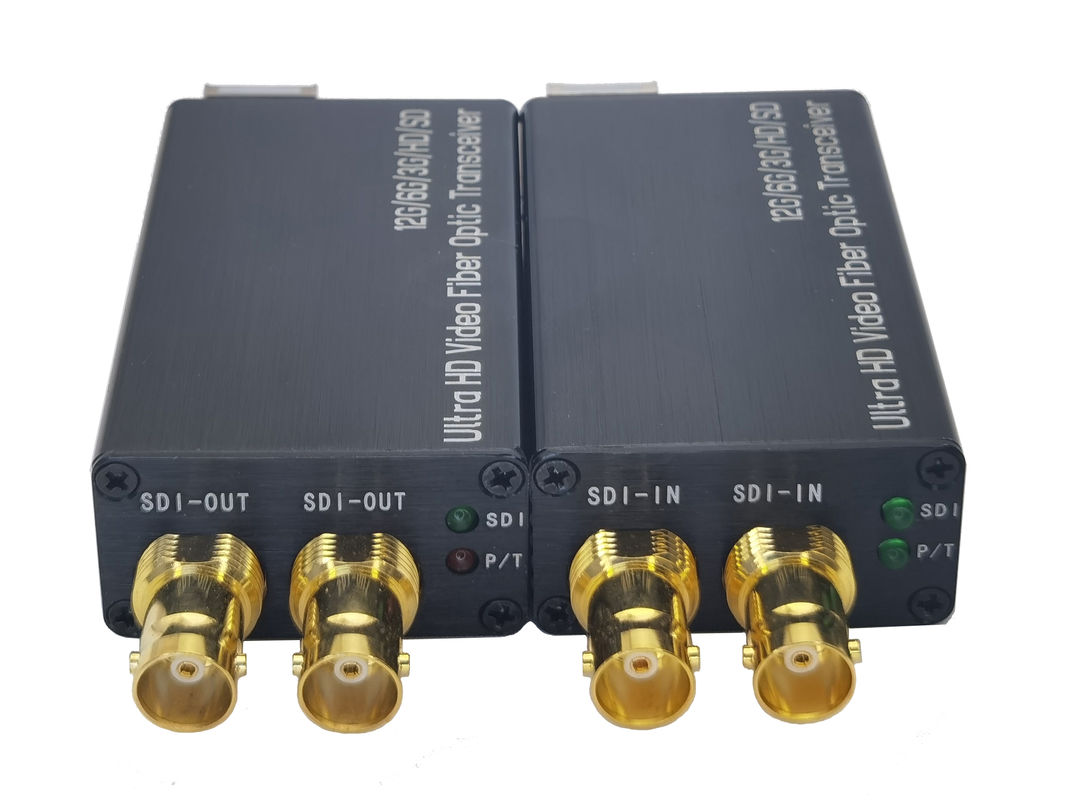

Mini 24G-SDI to Fiber Converter with 24G-SDI 1*LC fiber
Mini 24G-SDI to Fiber Converter with 24G-SDI 1*LC fiber
Advantages
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps*2, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 M bps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Terminal block power input for industrial application
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
► Supports 2160p/4k@120, 8k@60,1080P,1080I,720P.
Overview
LNK-M24G-1F1 Series Mini-type 24G-SDI Fiber Converter supports 2-Channel 12G Video (audio embedded) transmitted via fiber optical cable. E-link 24G Video over Fiber Converters includes one transmitter and one receiver for HDTV 2160p/4k@120,8k@60, 1080P,1080I, 720P.
Technical Indexes
|
Formats
|
Supports UHD-2 or 24G UH D-SDI, SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
|
|
Compatible
|
Compatible With D VB-AS I and AES10 (MADI)
|
|
Input
|
2 x 12G-SDI on BNC
|
|
|
1 x 24G-SDI 1*LC fiber
|
|
Output
|
2x 12G-SDI on BNC
|
|
Supported Resolution
|
HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P
|
|
Resolution range
|
2160p/4k@120,8k@60Hz
|
|
Input cable specification
|
≤70m@12G SDI Bel den 1694A
|
|
Output cable specification
|
≤70m@12G SDI Belden 1694A
|
|
Optical transmission bandwidth
|
270MHz～12GHz
|
|
Power
|
5-15 VDC
|
|
Power Consumption
|
2 W (Max.)
|
|
Dimensions (LxWxH)
|
80 x 40 x 20 (mm)
|
|
Storage Temperature
|
-40℃～80℃
|
|
Operating Temperature
|
-40℃～85℃
|
Ordering Information
|
Model
|
Description
|
|
LNK-M24G-1F1-20
|
Mini-type 24G-SDI to Fiber Converter, 2*12G-SDI Video, 1*24G SFP(1*LC) Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
|
Application
► Video production
► Broadcasting
► Camcorder
► Studio-to-studio
► Post-production
► Live events
► Medical imaging displays
► Mobile video
► 24G/12G/6G/3G/HD/SD-SDI routing
► 24G/12G/6G/3G/HD/SD-SDI CCTV
