12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector

Détails du produit

Lieu d'origine: Chine

Nom de marque: E-link

Certification: ISO9001, CE, ROHS, FCC

Numéro de modèle: LNK-INJ302

Conditions de paiement et d'expédition

Quantité de commande min: 1 pièce

Prix: negociate

Détails d'emballage: Emballage standard en carton pour l'injecteur PoE

Délai de livraison: 3 à 5 jours ouvrables

Conditions de paiement: T/T, Western Union, MoneyGram, Paypal ou tout autre moyen de paiement

Capacité d'approvisionnement: 1000 par mois

Obtenez le meilleur prix
Contactez-nous maintenant
Les spécifications
Mettre en évidence:
Taux de filtrage avant:
1,488,000pps (1000Mbps)
Câblage:
10/100/1000Base-T: Cat5 ou supérieure
Connecteur:
4x RJ45
Résultats de l'enquête:
>200,000hours
Température de fonctionnement:
-40°C à 80°C (- 40°F à 176°F)
Les dimensions (WxDxH):
95 x 70 x 30 millimètres
Taux de filtrage avant:
1,488,000pps (1000Mbps)
Câblage:
10/100/1000Base-T: Cat5 ou supérieure
Connecteur:
4x RJ45
Résultats de l'enquête:
>200,000hours
Température de fonctionnement:
-40°C à 80°C (- 40°F à 176°F)
Les dimensions (WxDxH):
95 x 70 x 30 millimètres
Définition
12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector



Model:LNK-INJ302



Overview

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows

you to connect the IEEE 802.3 af/at PoE device such as camera and access point with

a non PoE LAN switch within the distance of 100m.



Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000

Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE

802.3 at.



LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC

for high availability applications.



Features

► 12~48VDC Power Input

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Max 60W PoE at one port, total POE power less than 60W

► Extensive LED indicators for PoE diagnostics

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

►2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature



Technical Indexes

Ethernet
Standards: IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 10/100/1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 4x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 70W Max.
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
Max. Power per Port: 60W Max (Alternative B Mode)
LED Indicators:
Power: Power Status
PoE: PoE Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.26Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
CE-EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV



Application

  • IP Cameras: Provides PoE power and data transmission for surveillance systems.
  • Access Points: Supplies power to wireless access points in non-PoE networks.
  • VoIP Phones: Ideal for powering IP phones in office environments.
  • Remote Devices: Perfect for remote PoE devices in industrial and commercial settings.

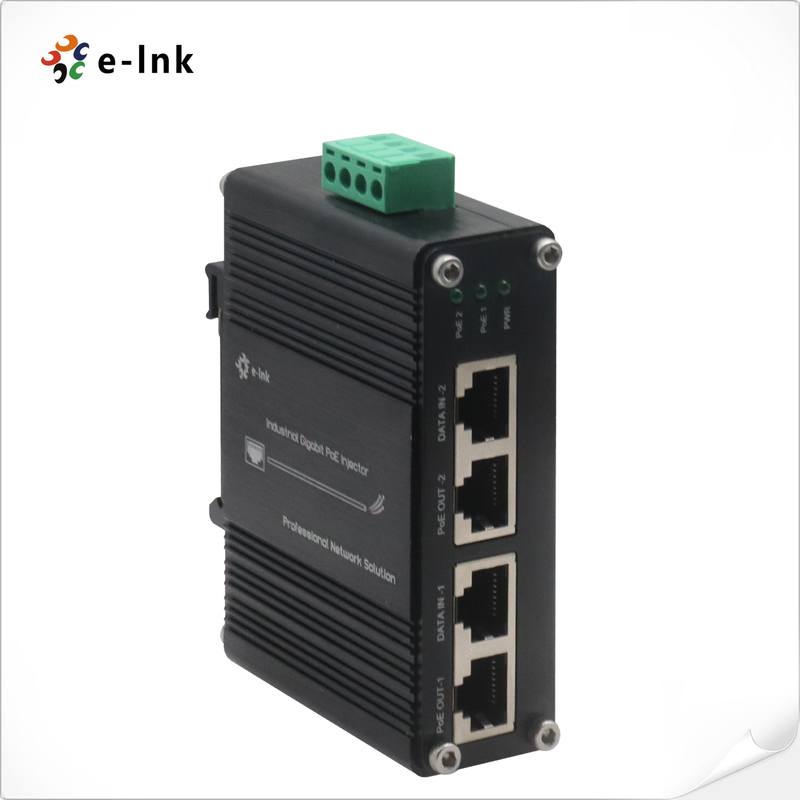

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector 0

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector 1



Order Information

Model Description
LNK-INJ302 12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
