Détails du produit
Lieu d'origine: Chine
Nom de marque: E-link
Certification: ISO9001, CE, RoHS, FCC
Numéro de modèle: LNK-IMC008GP
Documents: E-link LNK-IMC008GP Industr....0.pdf
Conditions de paiement et d'expédition
Quantité de commande min: 1 pièce
Prix: Négociable
Détails d'emballage: Emballage standard de carton de commutateur industriel de PoE
Délai de livraison: 7-10 jours ouvrables
Conditions de paiement: L/C,T/T,Western Union,MoneyGram,Paypal
Capacité d'approvisionnement: 100000 pièces/mois
Le poids: |
0.6kg |
Dimensions (WxDxH) :: |
150 x 115 x 50 mm |
Options de montage: |
DIN-rail / monture murale |
Consommation électrique: |
30 W maximum par port (mode B alternatif) |
Le poids: |
0.6kg |
Dimensions (WxDxH) :: |
150 x 115 x 50 mm |
Options de montage: |
DIN-rail / monture murale |
Consommation électrique: |
30 W maximum par port (mode B alternatif) |
Product Advantages
► 8x10/100/1000Base-TX with PoE+
► Support IEEE802.3at PoE(30W per port)
► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports 16K MAC address
► 2M bits frame buffer memory
► Supports DIN-Rail and Wall-mount installation
► Redundant Power Inputs
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

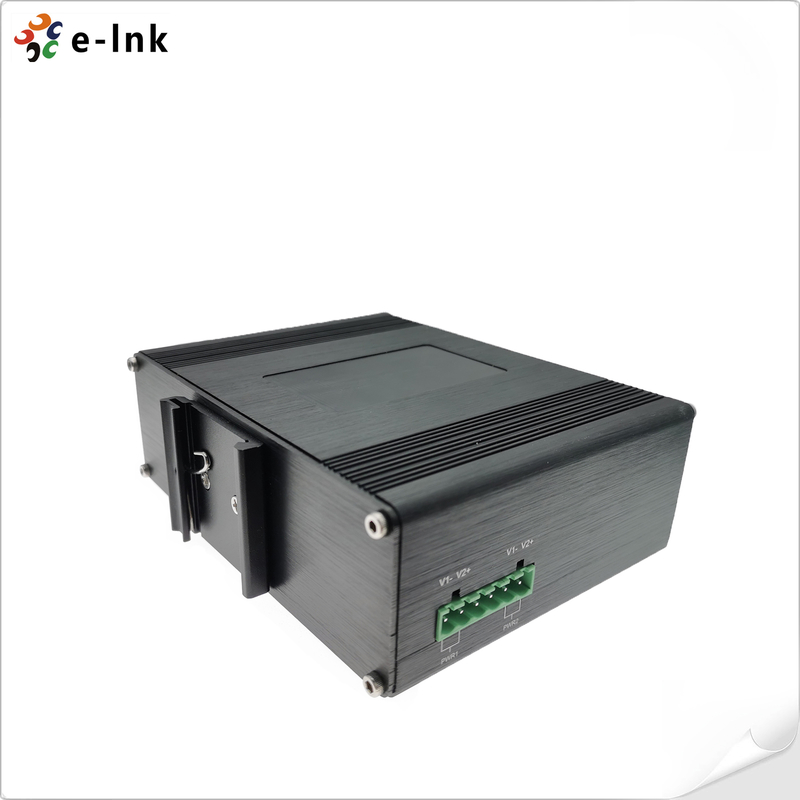

LNK-IMC008GP is an 8 ports 10/100/1000Base-TX Hardened Ethernet PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Technical Indexes
Packet Buffer Memory: |
2M bits |
Switch Fabric: |
16 Gbps |
Max Packet Length: |
10K Bytes |
Address Table Size: |
16K MAC Addresses |
Interface |
|
Connector: |
8 x RJ45 |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF |
> 200,000 hrs |
Electrical and Mechanical |
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
Power Consumption: |
245W Max. (PoE in use) |
5W Max. (PoE not in use) |
|
Standard: |
IEEE802.3af/at |
PoE: |
|
Port: |
RJ45 Port 1 ~ Port 8 |
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
Protection: |
|
Power Input Overload: |
Automatic Resettable |
Reverse Polarity: |
Present |
LED Indicators: |
|
Power: |
Power1, Power2 Status |
PoE: |
Per Port Status |
Ethernet (Per Port): |
Link/Activity |
Dimensions (WxDxH): |
150 x 115 x 50 mm |
Weight: |
0.6Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Application
Ordering Information
Model |
Description |
LNK-IMC008GP |
Industrial 8-port 10/100/1000BASE-T (8-port PoE+) Ethernet Switch |
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
► Power Supply is to be purchased separately. |
