Technical Parameters

Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3z 1000Base-T

IEEE 802.3x

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1W

IEEE 802.1x

IEEE 802.az

Network Management Function

Port management

Support enable/disable port

Support rate, duplex, auto-negotiation, MMU settings, etc.

Support flow-control flow control settings, back pressure flow control

Support Jumbo Frame

Support port information viewing, etc.

Port mirroring

Support port access direction, vlan mirroring

Port speed limit

Support port speed limit

Port isolation

Support port isolation settings

Storm suppression

Support unknown unicast, unknown multicast, broadcast storm suppression

Link aggregation

Support static manual aggregation

Support LACP dynamic aggregation

VLAN

Support port VLAN

Support protocol VLAN

Support MAC VLAN

Support QINQ

Support GVRP dynamic VLAN registration

MAC

Support static addition, deletion

Support MAC address learning limit

Support dynamic aging time setting

Spanning tree

Support for 802.1d (STP)

Support for 802.1w (RSTP)

Support for 802.1s (MSTP)

Multicast

Support IGMP-Snooping

Support MLD-Snooping

Support GMRP

Ring

Extremely distributed fiber optic ring network ABRing, self-healing time <5ms

ACL

Support based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number

QOS

Support for 802.1p (COS) classification

Support based on DSCP classification

Support based on source IP, destination IP, port number classification

Support SP, WRR, DRR scheduling strategies

Support flow rate limit CAR

LLDP

Support LLDP link discovery protocol

user settings

Support for adding/removing users

Log

Support user login, operation, status, event logging

System Management

Support device reset, configuration save/restore, upgrade management, time setting, etc.

Certification

Support for 802.1x port authentication (Radius, local)

Support AAA certification

Safety

Support Source IP filtering

Support DOS attack protection

Support PING attack protection

CLI

Support serial port command line management

TELNET

Support telnet remote management

SSH

Support SSHv1/2 remote management

SNMP

Support v1/2/3

Support Trap: ColdStart, WarmStart, LinkDown, LinkUp

WEB

Support web settings, viewing, etc.

RMON

Support RMON v1

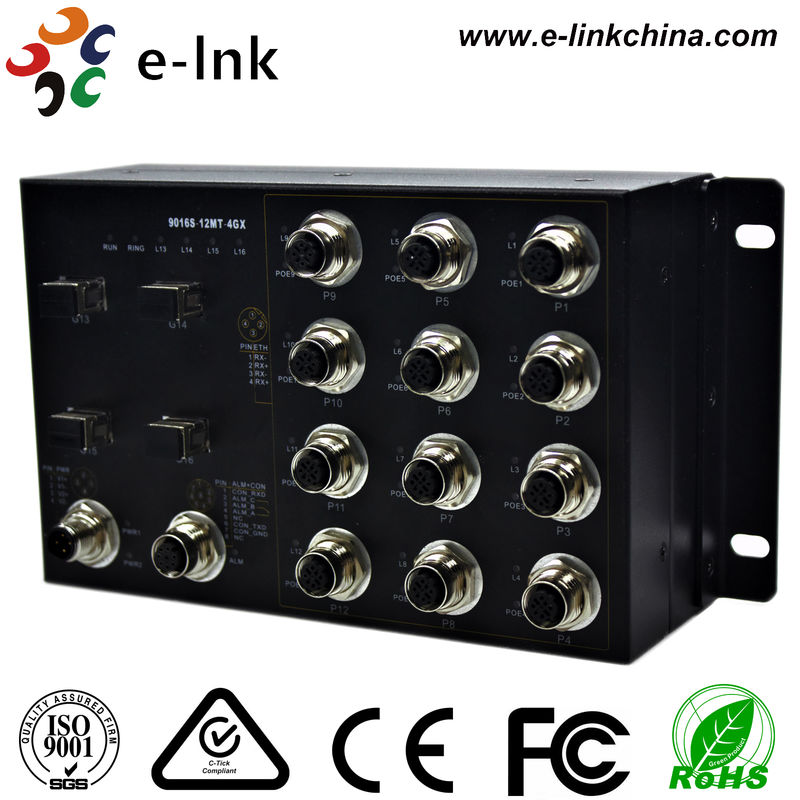

Interface

100M electric port

10/100BaseT(X) adaptive

4- core M12 ( D code ) interface

Gigabit electrical port

10/100/1000BaseT(X) adaptive

8-core M12 (X code) interface

Gigabit optical port

100Base-FX/1000Base-X ( 1*9 fixed ) LC interface

Transmission distance

Multimode 2KM, 4KM

Single mode 20～120KM

Console port

RS232, M12 interface form
