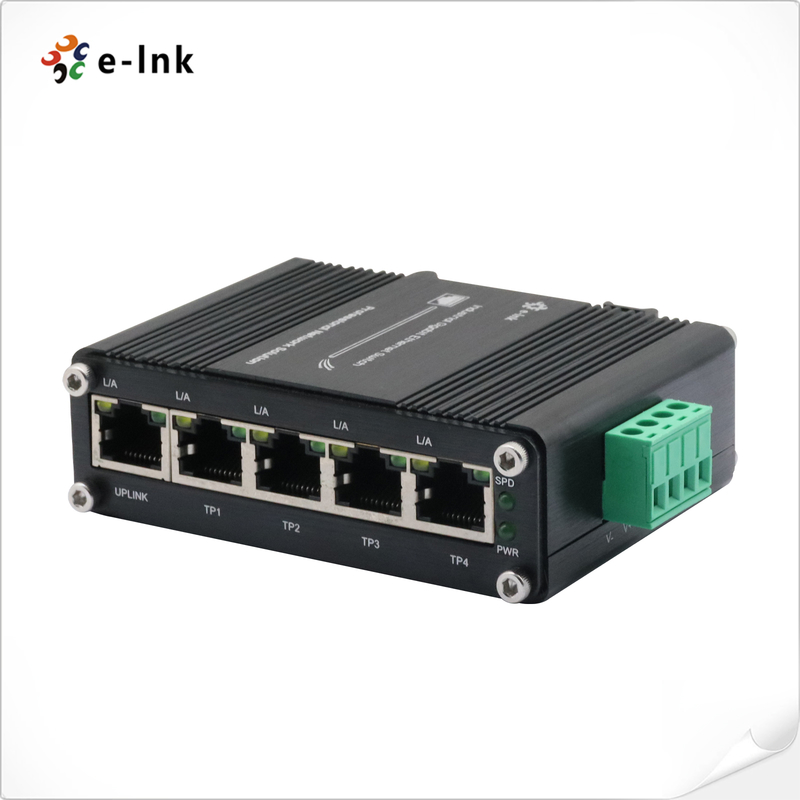

Mini Industrial 5 Port Gigabit Ethernet Switch

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3af/at Optional

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

8K

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

<6W (PoE In Use: <125W)

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 70x 29mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

LED Indicators:

PWR

Power

L/A

Link/Activity

SPD

Data Rate

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
