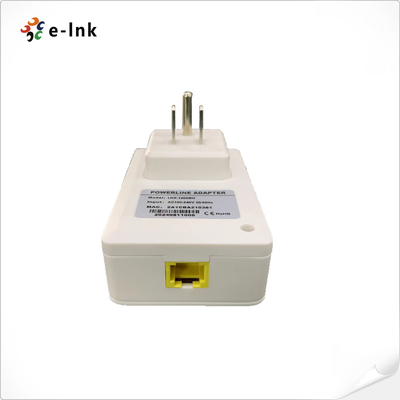

1200M Powerline Ethernet Adapter
Advantage
· Adopt HomePlug AV2, transmission rate(PHY) up to 1200Mbps.
· Take MIMO technology, the bandwidth is much wider and the data transmission much more stable.
· No wiring and setting.
· Adopt QOS technology, guarantee the transmission stability of streaming media.
· Hardware or software encryption(optional)
· Sub-compatible with IEEE1901 and HomePlug AV technology.
Overview
The E-LINK LNK-1200MH which adopts HomePlug AV2 standard supplies the maximum transmission
speed at 1200Mbps.You can erect the network through the existing power line of family, just plug it into
the power socket wherever you can find, the strong anti-interference ability makes it avoid being interfered
by the other electric devices, it also compatible with the IEEE1901 devices and the adoption of MIMO
technology upgrades the power line communication speed and quality, it enhances the multimedia streaming
quality through prioritizing flux, streaming HD video, high speed network linking, VOIP flux and upgraded
QOS functions. The device takes 128-bit AES data encryption and key management technology to guarantee
the safety of data transmission, the encryption procedure is simple, just through a button and no other settings.
LNK-1200MH adopts TR-069 standard and can remotely manage and set products through the server, if there
is no Ethernet signal transmission surpass 60s, the device will auto run into the energy saving state which only
consumes 0.5W(saving80% energy).
Technical Indexes
|
Interface
|
1* 10/100/1000Mbps self-adaption RJ-45 port.
|
|
LED display lights
|
Ethernet light (ETH)
PLC communication status (ACT)
Power light (PWR)
|
|
Ethernet
|
IEEE802.3
10/100/1000MbpsBaseT auto-sense
Auto rate and duplex negotiation
MDI/MDX support
|
|
Modulations
|
OFDM,FEC,Flexible frequency configuration
|
|
Data Rate
|
Up to 1.2Gbps
|
|
Management
|
HTTP Web-based;firmware upgrade via TFTP
TR-069 Supported(Optional)
|
|
Security
|
AES 128 bits encryption ensures total data security
|
|
Networking Protocols
|
802.1D Ethernet Bridge
802.1Q VLAN
Quality of Service(QoS)
IGMPV1/V2/V3(IPV4)Snooping & MLD(IPv6)Snooping
|
|
Power
|
110-240VAC 50Hz/60Hz
Auto power saving mode max 0.5W(in standby mode)
|
|
Environment Connection
|
Operating temperature:0-40 degrees Celsius
Relative humidity:8-95%(non-condensing)
|
|
Certifications
|
FCC,CE calssB, WEEE,RoHS, ITU-T G.hn Standard
|
|
Size
|
145*70*43(mm)
|
|
Environment
|
Operating Temperature: 0℃~40℃
Storage Temperature: -10℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
|
